631.2.2 Create new rule wizard[//]

Create a new rule wizard: To create a new rule, the system uses a wizard that will guide you through the rule creation process.

To create a new rule, the system uses a wizard that will guide you through the rule creation process. This process consists of a number of steps; the actual number of steps depends on the rule type (in almost all cases there are two steps).

Note

All forms of the Wizard process have the following buttons (if appropriate): Previous, Next and Cancel. The first form does not have the Previous button. The last form does not have a Next button but a Finish button. If the Cancel button is activated, the process is terminated. The system will ask for a confirmation.

Wizard Step 1 – Select the rule type

Select the appropriate rule type from the list of available types.

Depending on the selection step 2 will offer different options.

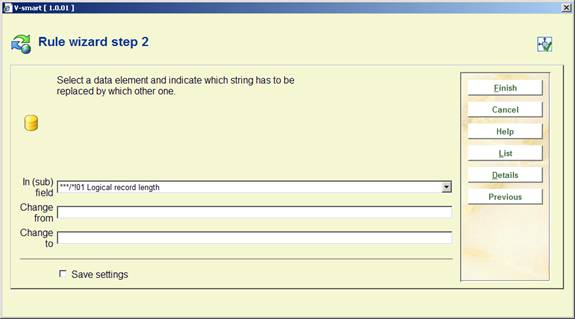

Wizard Step 2 – Replace data

Select to which data element the rule has to be applied and which data string has to be replaced by which other one.

The button "List" allows the user to select a valid option from data elements, which point to an authority list. The button "Details" allows the user to see details about a data element.

You can use the Replace type to remove parts of data from a field and to append data at the end or at the beginning of a field. The following table explains these specifics.

Both “From” and “To” data strings cannot contain more than one add-sign.

The @ character (add-sign) is used as the truncation character. If one wants to “global change” the add-sign as a character (and not as the truncation indicator), it should be preceded by the backslash (\).

Note

All examples in the previous table are case sensitive.

Wizard Step 2 – Transform data

Select to which data element the rule has to be applied and which transformations must be applied, and in which order they must be applied.

The button "Details" allows the user to see details about a data element.

The following transformations can be used:

·                all to uppercase

·                all to lowercase

·                first character uppercase

·                each word - first character uppercase

·                remove all but numeric characters

·                remove all punctuation

·                translate all punctuation to (nothing)

·                translate all punctuation to . (a dot)

·                translate all punctuation to – ( a dash)

·                translate all punctuation to blanks

·                remove all blanks

·                remove articles

·                remove all stop words

The list of valid transformations is identical to the list that is available in AFO 482 and 469.

Wizard Step 2 – Copy (sub)field

Select the (sub)field that has to be copied and the (sub)field to which it should be copied.

The button "Details" allows the user to see details about a data element.

Both data elements (“from” and “to”) have to be of the same type, i.e. both have to be either fields or subfields. The “From” and “To” data elements cannot be the same data element.

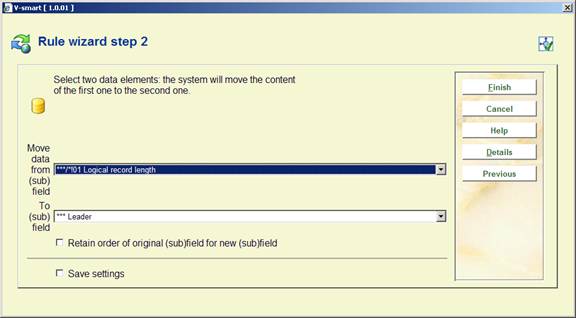

Wizard Step 2 – Move data

Select to which data element the rule has to be applied by selecting the (sub)field that has to move and the (sub)field to which it should be moved.

The button "Details" allows the user to see details about a data element.

Both data elements (“from” and “to”) have to be of the same type, i.e. both have to be either fields or subfields. The “From” and “To” data elements cannot be the same data element.

Wizard Step 2 – Flip data

Select the two fields of which the content has to be flipped.

The button "Details" allows the user to see details about a data element.

Both data elements (“from” and “to”) have to be of the same type, i.e. both have to be either fields or subfields. The “From” and “To” data elements cannot be the same data element.

Wizard Step 2 – Delete (sub)field

Select to which data element the rule has to be applied. The (sub)field will be removed from the record.

The button "Details" allows the user to see details about a data element.

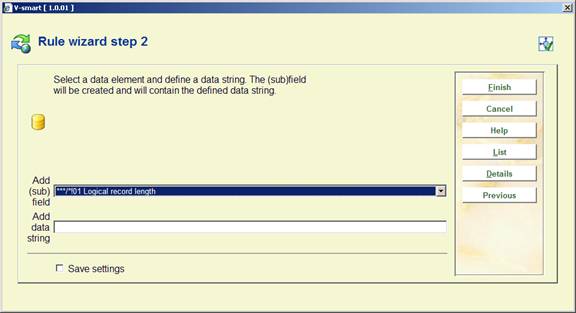

Wizard Step 2 – Add (sub)field

Select a data element and define a data string. The (sub)field will be created and will contain the defined data string.

The button "List" allows the user to select a valid option from data elements, which point to an authority list and. The button "Details" allows the user to see details about a data element.

Wizard Step 2 – Order (sub)field

Select the data element to change the order of within the record.

The button "Details" allows the user to see details about a data element.

This is the only option that offers a step 3 for the wizard:

Select the action appropriate for the selected data element to specify how the order of the data element should be changed within the record.

If the selected data element is a field, there will be:

·                a dropdown list containing all fields from the format and the extra option 'the start of the record" ["Add field before"]

·                a dropdown list containing all fields from the format and the extra option 'the end of the record" ["Add field after"]

If the selected data element is a subfield, there will be:

·                a dropdown list containing all subfields of the field specified in the selected data element and the extra option 'the start of the record" ["Add subfield before"]

·                a dropdown list containing all subfields of the field specified in the selected data element and the extra option 'the end of the record" ["Add subfield after"]

631.2.3 View/modify restrictions for a rule[//]

View/modify the restrictions for a rule: If you activate the view restrictions for a rule button, the system navigates to the restriction overview screen.

The restriction overview screen is largely identical to the SSP selection profile screen as used in AFO 141->selections.

Above the list of defined restrictions for the selected rule the system shows the Boolean relationship between the restrictions. For each restriction the following data is shown: criteria, operator, data type, variable, value and exact value.

Options on the screen

New criteria: Choose the option to create new criteria. See section 631.2.3.1.

Change criteria (+): Select a criterion and then this option to modify it. The same form as for new criteria is presented. See section 631.2.3.1.

Delete criteria (+):Select a criterion and then this option to delete it.

Note

Deleting a restriction can make the Boolean expression invalid. If this is the case, the system will show a warning and remove the Boolean expression. You will have to redefine a correct expression.

Savelist to the web parameters: This option is only relevant in AFO 141 and therefor not active here.

Delete profile: This option is only relevant in AFO 141 and therefor not active here.

Copy profile (+): This option is only relevant in AFO 141 and therefor not active here.

View/modify profile comments: This option is only relevant in AFO 141 and therefor not active here.

Boolean relationship: If you do not add a Boolean relation to the profile, the system will automatically assume the Boolean relation to be “AND”. With this option you can set another Boolean relationship. See section 631.2.3.2.

Move criteria (+): The system will show a form where you can specify the new (line) number of the selected restriction. After pressing OK the system will insert the restriction at the specified number. Any existing restriction with that number and all restrictions coming after the specified number will be automatically moved one number down.

Select elements from: This option is only relevant in AFO 141 and therefor not active here.

Go to last generated savelist: This option is only relevant in AFO 141 and therefor not active here.

Execute selection: This option is only relevant in AFO 141 and therefor not active here.

Note

If a conversion profile is defined to add a subfield, e.g. 200/$b, then this subfield is added within a NEW 200 field if the rule has no restrictions.
If the rule has a restriction which is true (i.e adding 200$b, restriction is 200$a must be defined), then the new subfield is added into the same tag occurrence.

631.2.3.1 Add new criteria[//]

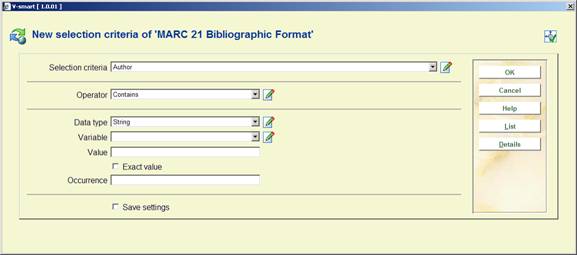

New criteria: Choose the option to create new criteria. An input form is shown:

Fields on the screen

Selection criteria: Select a criterion from the list.

Operator: Select an operator from the list of available operators.

Data type: Select “String” or “Variable”.

Variable: Select a variable from the list of available variables.

Value: Type in a value. This can be any string.

Exact value: Indicate whether or not the Value has to be interpreted “exactly” (i.e. without any transformation) or “normalised” (i.e. transformed to uppercase).

The relationship between Variable and Value

If the Data Type “Variable” is selected, you can define both Variable and Value to achieve specific results. If you start Value with a plus (+) or a minus (-) sign, followed by a number, the system will add (+) or deduct (-) the number from the value of the Variable.

Example

If you define Variable as “Today” and Value as “+1”, the system will select the date of Today+1, which is tomorrow; if you define Variable as “1^st January of Current Year” and Value as “-1”, the system will select the first day of the current year -1, which is the last day of the previous year.

631.2.3.2 Boolean relationships[//]

Boolean relationship: If you do not add a Boolean relation to the profile, the system will automatically assume the Boolean relation to be “AND”. You can change the Boolean relation by using one of the following syntaxes.

“Complex” Boolean relations are expressed using the AND, NOT and OR operators and digits that refer to the restrictions in the profile.

Note

The evaluation of the string is pure left to right evaluation and that brackets should be used for nesting. Blanks will be automatically removed from the Boolean expression. The Boolean operators are not case-sensitive.

Some examples

Not that the Boolean expression cannot start with a Boolean operator. The following expressions are invalid:

·                NOT (1 AND 2)

·                NOT 3 OR 4

If you do not include all criteria in the Boolean expression, the ones that are not in the expression are automatically added to the expression with an AND relation.

Example

If a profile contains three restriction criteria and a Boolean expression “2 or 3” the system will automatically add the first criteria to the expression, which results in “2 or 3 and 1”. However, we advise you to include all criteria in the Boolean expression to avoid confusion.

631.2.4 Add a rule to a group[//]

Add a rule to a group: Select one or more rules from the 'general' group and click this button to add them to a (new) group. An input form will be displayed:

You can either select a group from the dropdown list or define a new group by entering data in the Comments field.

631.3 Conversion file maintenance[//]

After choosing this option an overview screen is displayed:

This option gives access to all options of save list management as if you selected through AFO 141->Save lists.

See the help on AFO 141 for more information about this screen and its options.

631.4 Conversion of files[//]

Activating a global change process is a multi step process. The initial step of this process determines all following steps.

After selecting this option an input form is displayed:

Fields on the screen

Report comments (optional): Type in comments for the report. The comments cannot consist of only punctuation characters and has a maximum length of 3000 characters. The comments can be used to better identify global change processes.

Save list: Select the save list that you want to apply the global change profile to.

Profile: Select the global change profile that you want to use.

Mode: Select in which “mode” you want to run the process. This is either “dummy" mode, “with confirmation" mode or “without confirmation" mode. Dummy mode implies that the system runs the process as a “dummy” process; no changes are made to the actual data files. With confirmation mode implies that the system will ask a confirmation for each record: each record will be displayed (with a “before” and “after” version of the record) and you have to confirm each change. Only if you confirm the change will it be applied to the actual data. Without confirmation mode implies that the process changes the actual data without asking for individual confirmations.

The further process, after you have clicked OK, depends on the run mode that you have selected.

If you have selected “Dummy" mode

The system switches to the general procedure for starting processes. You can now start the process in online, batch or memory mode.

If you have selected “Without confirmation" mode

The system shows a warning: “You are going to modify the records in save list XXX. This save list contains YYY records. Cancel this process if you have not tested it by running it in dummy mode or if you have not checked the result reports of the dummy conversion. Have you tested this process in dummy mode?”

The system shows an additional warning if the selected profile has not been used in "dummy" mode before which strongly advises the user to test the profile first using "dummy" mode.

The system switches to the general procedure for starting processes. You can now start the process in online, batch or memory mode.

If you have selected “With confirmation" mode

For each record in the save list the system shows the following form. Confirm if the system has to apply the change to the actual data, or Cancel if no change has to be made.

For each record in the save list the system shows a confirmation form.

This confirmation form allows you to see the record before any change is done and the record as changed by the profile and allows you to confirm those changes or not and to stop processing the save list entirely.

None of these fields can be modified.

The form contains the following buttons:

·                OK: the change is applied to the actual data

·                Cancel: the system skips the record (the change is not applied to the actual data) and moves to the next record in the save list

·                Stop: stop the whole process

Note

Records in the save list are skipped automatically if none of the rules apply.

At the end of the process (this is either if the end of the save list is reached or if the process is stopped by the user), the system displays the summary Totals.

If the system encounters a software problem during the global change process it should:

·                return the record to the state before processing of the record was started (not necessary if the process was started in "Dummy" mode)

·                log the record in the appropriate error category of the report of the global change task

·                continue with processing the next record from the save list.

631.5 Conversion reports[//]

The system displays the reports of all global change tasks that have been processed by the system, in reverse chronological order (i.e. the most recent one is at the top of the list):

Columns on the screen

Report id: This is a number that is automatically handed out by the system.

Report comments: The description given to the report.

Save list: The savelist against which the process task was performed.

Profile: The profile used to perform the task.

Mode: The global change mode used.

Number of records in the save list.

Number of errors: This can be higher than the number of records in the save list as the same error can appear multiple times in the same record.

Number of records processed: This can be lower than the number of records in the save list if the conversion is run in "With confirmation" mode and if the process is terminated by the user before the end of the save list is reached.

If the execution of the task was halted due to the fact that there were too many errors reported by the task the system will show a warning icon in front of the task.

Options on the screen

View report details: Select a report and then this option to view the details. See section 631.5.1 for more details about this screen.

Delete a report: Select a report and then this option to delete it. The system asks for a confirmation.

631.5.1 View report details[//]

The system displays a select list that contains an overview of all error types that appear in the report. At the top of the screen the system displays (in a bordered window) the same data elements that are shown on the overview screen of reports: task wording, save list, profile, global change mode, number of records in the save list, number of errors, number of records processed).

The select list displays the error type description, the number of records involved and the percentage in relation to the total number of records in the save list. [Please note that the total can be higher than 100% as the same record can be attached to multiple error types.]

The error types that are shown depend on the file type (application) that was processed (bibliographic, authority or borrower). On top of these file specific errors, the system shows the following information in the report:

·                Conversion was successful

·                Error encountered in record

·                Record has incorrect format
[as in not the same format as the profile uses; only for authorities and bibliographic records. Also indicates that the record had format errors when filed]

·                Record does not exist

·                Record is blocked

·                Records skipped manually
[if a process is run in "With confirmation" mode]

·                Records not processed
[if a process in "With confirmation" mode is cancelled]

·                No rule from the profile applied

The total is mentioned at the bottom of the error list.

Options on the screen

Select an error type: If you select an error type, the system displays a select list that contains the records that are attached to the selected error type. See section 631.5.1.1 for more details.

Delete the report: Select a report and then this option to delete it. The system asks for a confirmation.

Print the report details: The system switches to the standard dialog for generating output.

Store the records in a save list: The system asks in which save list the records have to be stored. This can be an existing save list, but you can also create a new save list.

631.5.1.1 Select an error type[//]

Select an error type: If you select an error type, the system displays a select list that contains the records that are attached to the selected error type.

Multiple detail lines can exist for a single record as the same error can occur multiple times in the same record.

Options on the screen

Select a record: The old and new version of the record will be displayed in a pop-up screen.

Details of a record to get access to the regular record overview screen (of bibliographic, authority or borrower maintenance, i.e. AFO 111, 113 or 431)

Copy records to a savelist: to store the records in a save list
